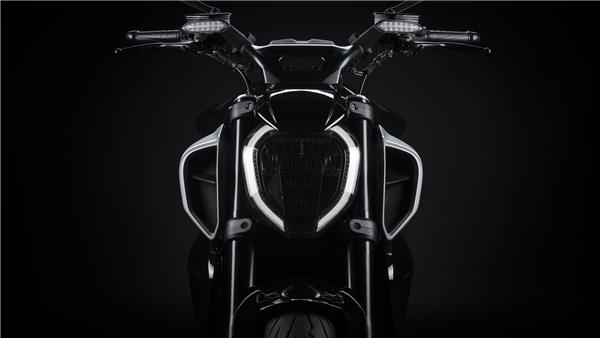

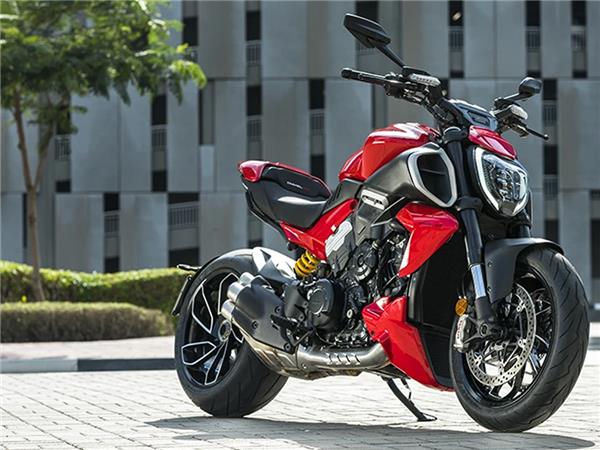

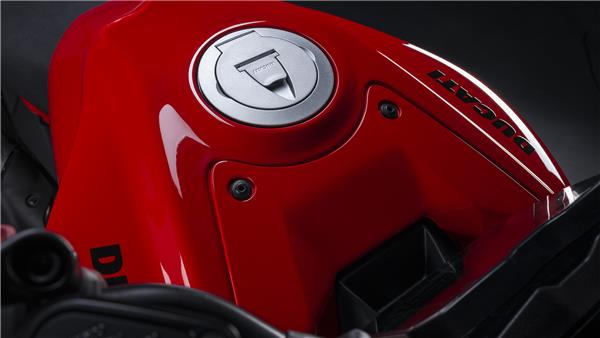

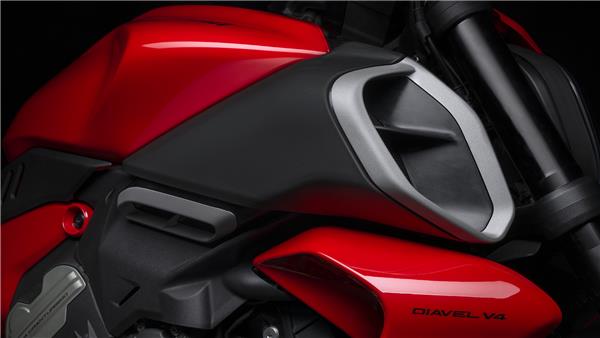

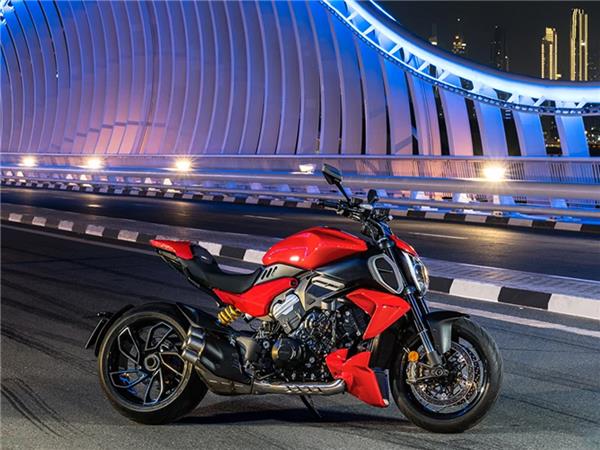

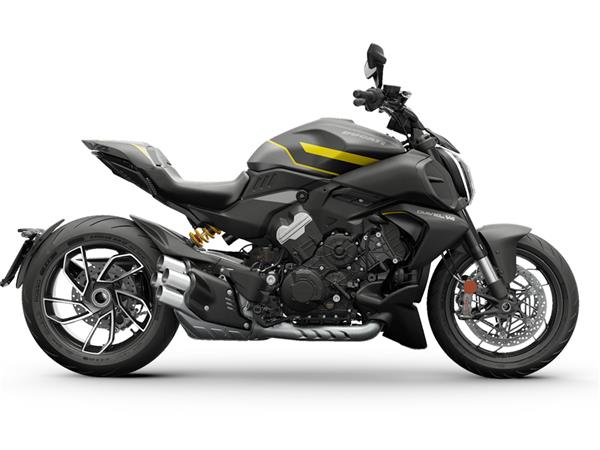

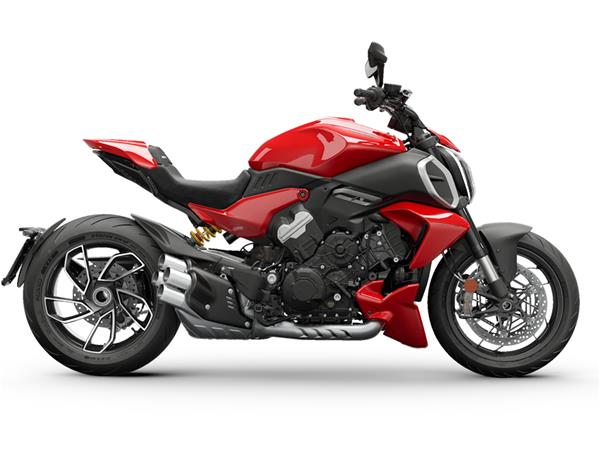

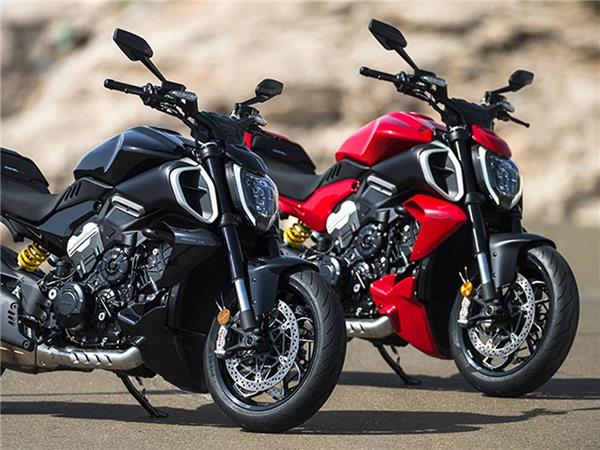

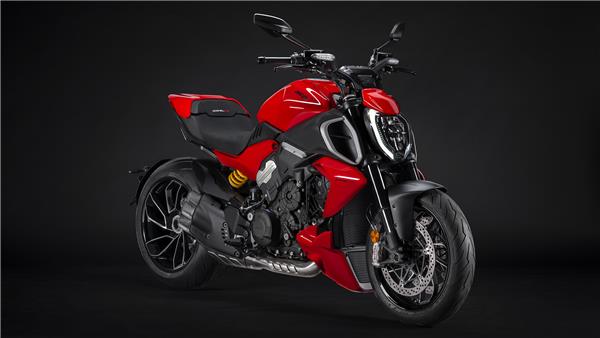

V4 Granturismo: the undisputed protagonist In the Diavel philosophy, the engine is the fulcrum around which everything revolves: performance, character and style. That's why Ducati designers started with the V4 Granturismo, making it the star of all design elements, with the mechanics prominently displayed as a distinctive feature. Muscle-cruiser with supersport personality With a steel fuel tank with an animated, sculptural shape reminiscent of Ducati supersport bikes, the tail is light, slender and sharp. The air intakes are a breaking element in the side view, communicating all the muscular power. Character and uniqueness are found in the details The LED daytime running light at the front has a double-C shape. The rear light cluster consists of an array of point LEDs under the tail, with a highly original design that repeats the double C of the DRL and can not leave indifferent.


Explore Ducati TriOptions
View Diavel V4 Specification Return to diavel

Enquire about the Ducati Diavel V4

To request more details about this bike, simply enter your details below and one of our experienced sales team will get back to you.


Please choose below if you would like to be contacted about our latest news and press. We will never use your address for anything but information about our organisation.

×

Thankyou for your enquiry

Ducati Chelmsford will get back to you within 24 hours

×

Book a test ride for this model


Please choose below if you would like to be contacted about our latest news and press. We will never use your address for anything but information about our organisation.

×

Thankyou for your Test Ride enquiry

Your enquiry has been recieved by a member of the Ducati Chelmsford team and they will get back to you within 24 hours

×

Finance the Suzuki Diavel V4

To apply for finance on the Ducati Diavel V4, simply enter your details below and one of our experienced sales team will get back to you and discuss the various options available.


Bike Details


Personal Details


Address Information

Current Address

2nd Address


Employment & Occupation Information


Banking & Deposit Information

Please fill in the information below regarding your finance request. We will contact you to request your banking information upon receipt of the completed form.


Send Information

Would you be willing to proceed providing the application is successful:

×

Thankyou for your Finance enquiry

Your enquiry has been recieved by a member of the Ducati Chelmsford team and they will get back to you within 24 hours

×

Diavel V4 Specification

Frame

Frame

Tubular steel Trellis frame

Rake

27°

Front Wheel

Light alloy cast 3.5"x17"

Front Tyre

Pirelli Diablo Rosso III 120/70 ZR17

Rear Wheel

Light alloy casted 8.0"x17"

Rear Tyre

Pirelli Diablo Rosso III 240/45 ZR17

Fuel Tank Capacity

17l - (4.5 US gal)

Dry Weight

223 kg (492 lb)

Performance

Engine Type

Ducati Testastretta DVT 1262, L-Twin cylinder, 4 valves per cylinder, Dual Spark, Liquid cooled, Desmodromic Variable Timing

Displacement

1,262 cc (77.0 cu in)

Power

162 hp (119 kW) @ 9,500 rpm

Torque

129 Nm (95 lb-ft, 13.1 kgm) @ 7,500 rpm

Exhaust

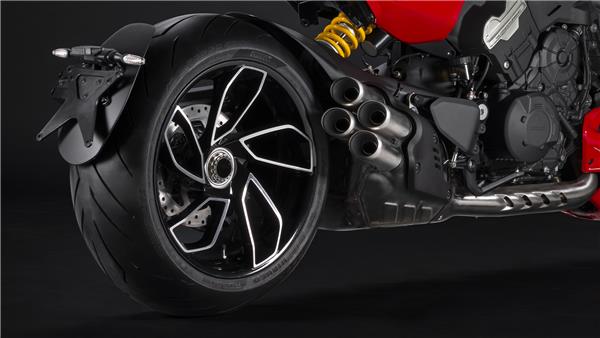

Stainless steel pipes and single muffler with twin tail pipes, Catalytic converter and 2 lambda probes.

Gearbox Type

6 speed

Gearbox Ratio

1=37/15, 2=30/17, 3=27/20, 4=24/22, 5=23/24, 6=22/25

Primary Drive

Straight cut gears, ratio 1.84:1

Final Drive

Chain, Front sprocket Z15, Rear sprocket Z43

Clutch

Slipper and self-servo wet multiplate clutch with hydraulic control

Brakes

Front Brake

2 x Ø 320 mm semi-floating discs, Radially mounted Brembo monobloc 4-piston M4.32 callipers, PR18/19 radial master cylinder, Bosch Cornering ABS Evo

Rear Brake

Ø 265 mm disc, 2-piston Brembo floating calliper, Bosch Cornering ABS Evo

Suspension

Front Suspension

Ø 50 mm adjustable usd fork

Rear Suspension

Monoshock, preload and rebound adjustable, Aluminium casted single-sided swingarm

Dimensions

Wheelbase

1600mm (63 in)

Front Wheel Travel

120mm (4.7in)

Rear Wheel Travel

130mm (5.1in)

Seat Height

780 mm (30.7 in)

Bore x Stroke

106 x 71.5 mm

Compression Ratio

13.0 : 1

×
